| Thread Diameter Size (TDZ) | M24 | Overall Length (OAL) | 4-29/32″ |
| Thread Standard | Metric | Coolant Supply Property (CSP) | External |
| Pitch in mm | 2 mm | Flute Count (NOF) | 4 |
| Flute Type | Straight | Cutting Edge Material | HSS |
| Thread Tolerance Class (TCTR) | D7 | Quantity | 3 |

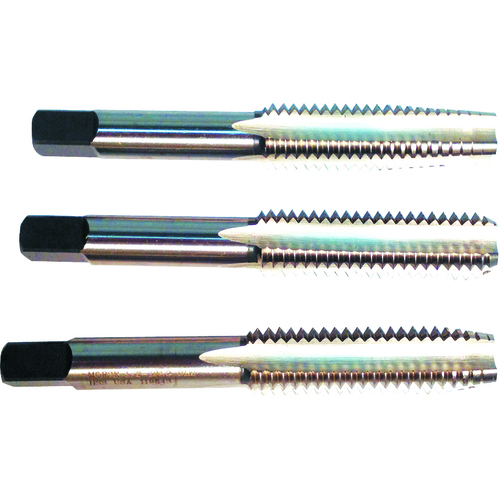

| Style | Straight Flute Hand Tap Set | Measurement Type | Metric |
| Tool Type | General Purpose Hand Taps | Series/List # | 7500 |
| Flute Length | 2-7/32″ | Contains | Taper, Plug, Bottoming |
| Cutting Direction (HAND) | Right Hand | Thread Pitch (TP) | 2 mm |
| Coating | Uncoated | Thread Size | M24 × 2 |
Product Features
| Remarks | Straight Flute hand taps are used for hand tapping and machine tapping in through holes or blind holes in a wide variety of materials. | ||
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
5.40000
Package Width
3.40000
Package Height
1.20000
Package Weight
1.71
