TBNR-1125-N C26S

Name: TBNR-1125-N C26S
Brand: RigidLock
SKU: FG34055330
Price: 63.00 USD
Availability: InStock

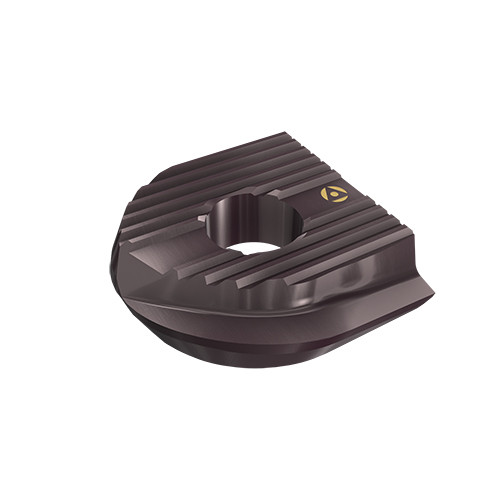

RigidLock Ball Nose Style Milling Inserts with Neutral Flute

Item # FG34055330

Brand: Tool-Flo

MFG#: 2408144

Alternate MFG #: 02408144

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Application

| Ext Milling Rigid Lock |

Maximum Feed per Tooth (fz(max))

0.25 mm/tooth

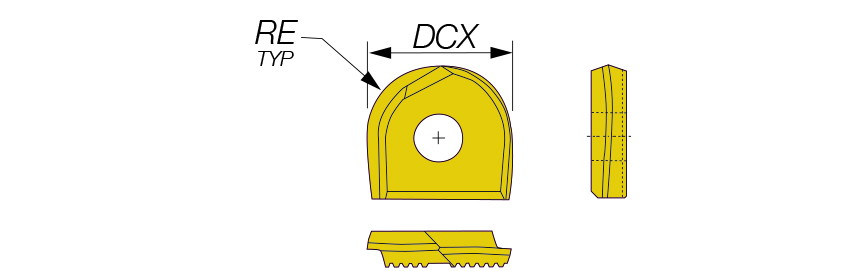

Corner Radius (RE)

0.562″

Cutting Direction (HAND)

Right Hand

Depth of Cut Maximum (APMX)

0.562″

Cutting Edge Material

Carbide

Insert Thickness (S)

0.236″

Tool Type

Single sided Inserts

Coating

Uncoated

Minimum Feed per Tooth (fz(min))

0.15 mm/tooth

Grade

C26S

Measurement Type

Inch

Insert Style

TBNR

Body Material

Carbide

Insert Size

1125

Cutting Diameter (DC)

‎1-1/8″

Product Features

Family Description

RigidLock Ball Nose Style Milling Inserts with Neutral Flute

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Country of Origin

USA

Shipping Info

Package Weight

0.001
